Original CMT-TIT8244

High temperature 1700V half bridge SIC MOSFET gate driver (optimized for 62MM power module)

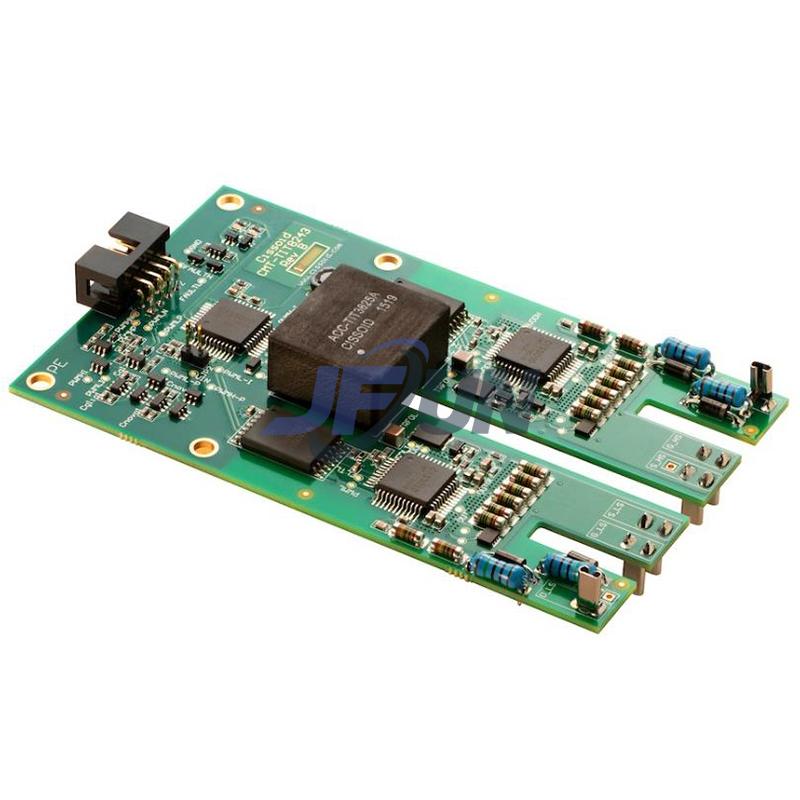

CMT-TIT8244 is a gate driver board optimized for 62mm silicon carbide (SiC) MOSFET power modules with a rated temperature of 125 ° C (Ta). This board is based on the CISOID HADES gate driver chipset, providing thermal margin for the design of high-density power converters in automotive and industrial applications. It achieves high-frequency (>100KHz) and fast SiC MOSFET switching (dV/dt>50KV/µ s), improves the efficiency of the power converter, and reduces its size and weight.




This board is designed for harsh voltage environments and supports the drive of a 1700V power module. It has an isolation voltage of up to 3600V (50Hz, 1min) and a creepage distance of 14mm. Protection functions such as Undervoltage-lockout (UVLO), active Miller clamping (AMC) and desaturation detection can ensure safe driving and reliable protection of the power module in case of failure.  Original  CMT-TIT8244  100% original    CISSOID   100% original
